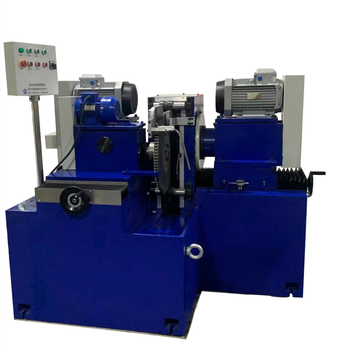

Rotary Double End Grinding Machine

This machine tool is suitable for length grinding of stainless steel motor shafts and both end faces of motor shafts.

The machine tool structure is arranged horizontally, with good rigidity, high precision, long service life, and easy maintenance.

The machine tool adopts a rotary feeding and continuous grinding process, and is equipped with a complete set of automated feeding devices, which improves production efficiency. The production capacity reaches more than 100000 pieces per shift, ensuring consistency in product size requirements. It has been adopted by many customers in Jiangsu, Zhejiang, Guangdong and other regions

Main technical parameters:

(1) Processing scope

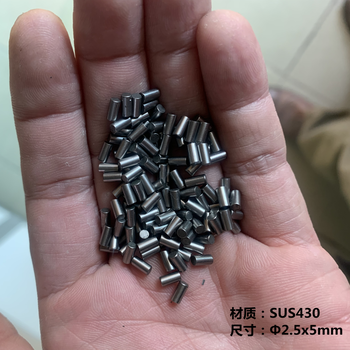

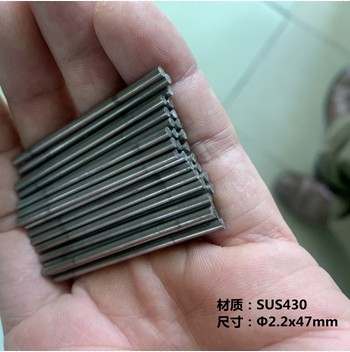

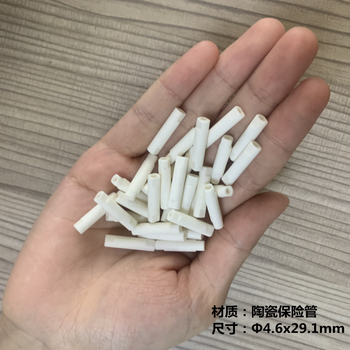

Workpiece diameter: φ1.0～φ20mm

Workpiece thickness: 4-50mm

(2) Main parameters

Grinding wheel specification: φ 300X φ 180X26mm

Grinding wheel speed 1440r/min

(3) Machine tool appearance

Length x Width x Height 1280x1150x1400mm

Weight 1200Kg

Double end face grinder is a type of flat machining machine that grinds two parallel end faces simultaneously in one machining process. According to its structure, it can be divided into horizontal and vertical types, and according to the feeding method, it can be divided into through type, turntable type, and reciprocating type. Shenzhen Shuangmo Machinery Technology focuses on the production of horizontal double end grinding machines and rotary feeding structures. Due to the high precision of the ground products, they are widely used in many industries such as stainless steel and stainless steel shafts.
