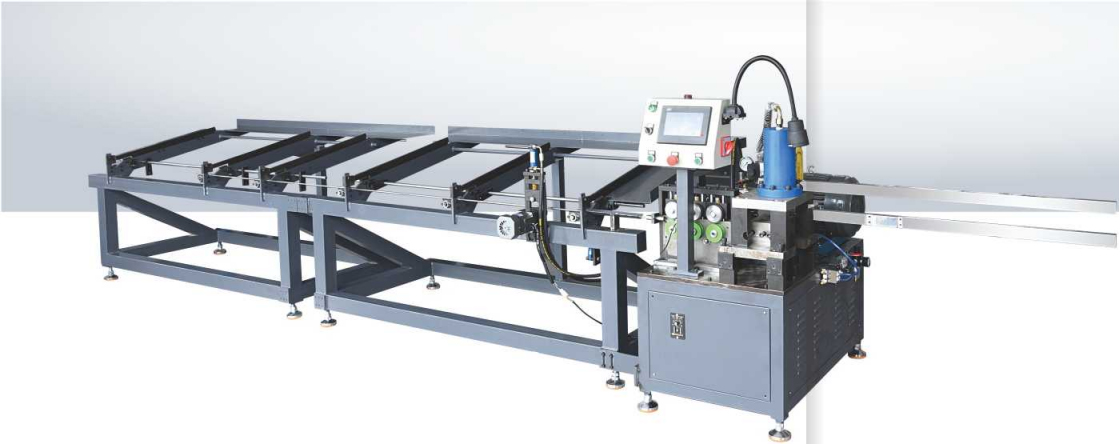

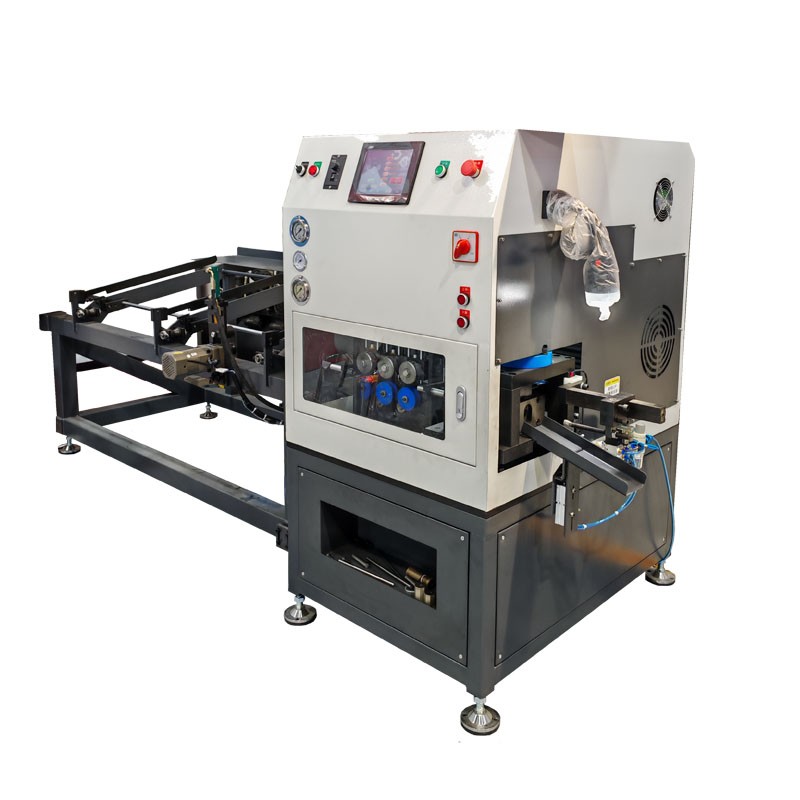

Bar hydraulic high-speed cutting machine

       The Bar hydraulic high-speed cutting machine is an efficient automation equipment mainly used for precise

and fast cutting of bar materials. The working principle of this machine mainly relies on the hydraulic system. By

using hydraulic oil as the working medium, the mechanical energy of the prime mover is converted into pressure

energy of hydraulic oil, which is then converted back into mechanical energy through control components and

actuating components (such as oil cylinders or oil motors), thereby driving the load to achieve linear or rotary

motion. By remotely controlling the control components and adjusting the flow rate, the force and speed of the

executing components can be precisely set.

The Bar hydraulic high-speed cutting machine is mainly composed of a body, a hydraulic system, a

feeding device, and a control system. The body is made of high-strength steel to ensure the robustness,

stability, and excellent seismic performance of the structure. The hydraulic system uses imported

hydraulic components to provide high-pressure, high-speed, and efficient power support. The feeding

device usually adopts advanced steel ball screw guide structure to achieve high-precision feeding. The

control system mostly adopts PLC programming control, which can automatically identify the processing

materials and intelligently adjust the processing parameters, thereby ensuring the stability and consistency

of the processing quality.

The main characteristics of this cutting machine are high efficiency, high precision, and wide applicability.

It can quickly and accurately complete the cutting work of a large number of bars, and due to its high-precision

 characteristics, it can ensure that the length and weight of each bar meet the requirements. In addition, by

replacing the corresponding tools, it is easy to switch products between bars with different outer diameters,

thereby saving time and labor. This equipment is widely used in the processing of various stainless steel,

alloy steel, aluminum, brass, copper and other bar materials, especially in industries such as automotive,

electronics, machinery, medical equipment, etc.

Overall, the Bar hydraulic high-speed cutting machine is an advanced, efficient, and stable automation

equipment that can significantly improve production efficiency and processing quality, while reducing

manual operating costs.

The external structure of the hydraulic cutting machine is constructed with square materials, and the shaft

components are completed using the hydraulic cutting method, with low noise and vibration. In addition,

the equipment is equipped with an automatic feeding mechanism, which can achieve automatic feeding

and cutting functions, reduce employee labor intensity, and improve processing efficiency. The equipment

also has an automatic head and tail cutting function, with a flat cutting end face and a length tolerance

controlled within ± 0.1mm. The overall structural rigidity of the equipment is good.
