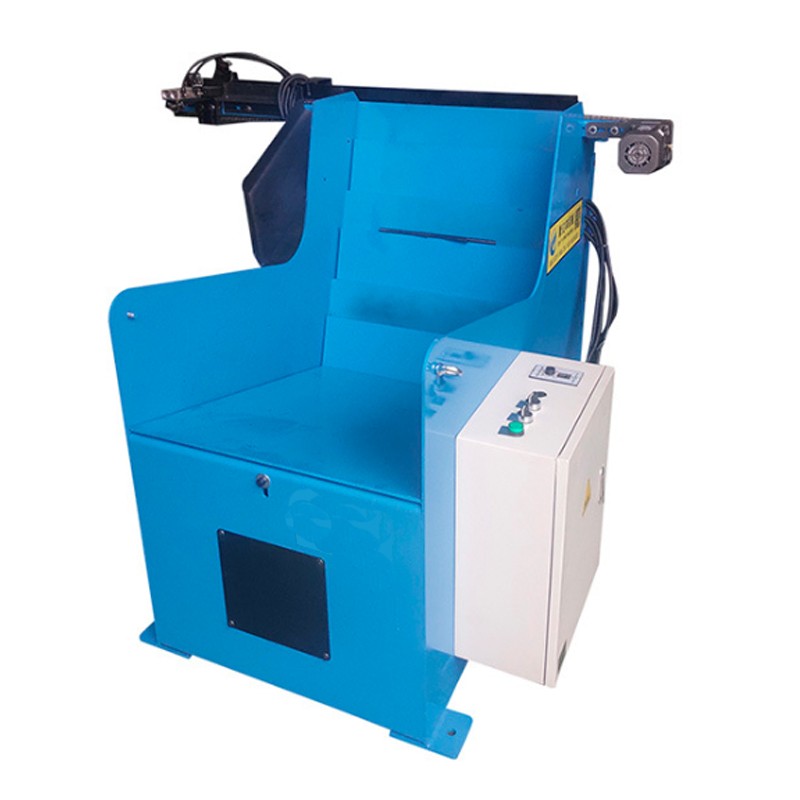

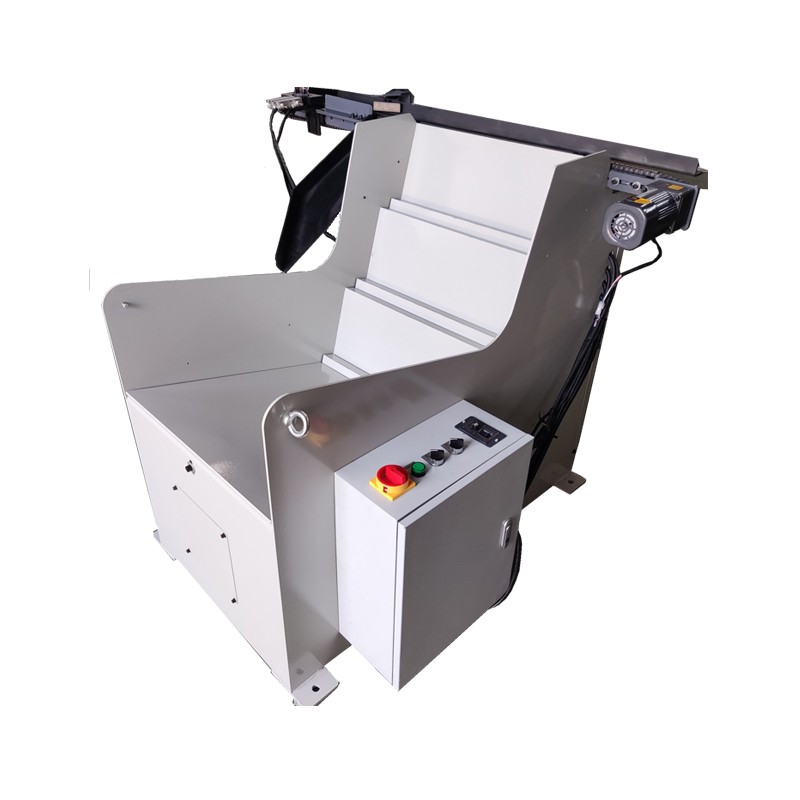

Push plate in and out type automatic feeding machine

Push plate automatic feeding machine is an automated equipment mainly used to move materials from one position to another, especially suitable for material conveying on production lines. The following is an introduction to the push plate automatic feeding machine:

Basic Structure

Pushing plate: Pushing plate is a key component that drives material movement, usually made of sturdy materials such as steel or aluminum alloy, with a flat surface so that the material can slide smoothly on it.

Track: The track is a structure that supports and guides the movement of the push plate, usually made of metal material and installed on the base of the machine. The track can be straight or curved, designed according to actual needs.

Transmission system: The transmission system is used to drive and control the movement of the push plate, usually including motors, reducers, chains, and other parts. The motor provides power, and the reducer converts the high-speed rotation of the motor into the low-speed high torque motion required for the push plate. The chain transmits the driving force to the push plate.

Control system: The control system is used to monitor and control the operation of the push plate feeding machine, usually consisting of sensors, PLC (programmable logic controller), human-machine interface, and other parts. Sensors are used to detect the position and status of materials, PLC controls the movement of the push plate based on sensor signals, and the human-machine interface is used to operate and monitor the push plate feeding machine.

working principle

The working principle of the push plate feeding machine can be divided into the following steps:

• Ready: Before starting work, the materials to be processed need to be placed in the starting position, which can be done manually or automatically.

Material conveying: The push plate pushes materials along the track to the target position through the power of the transmission system.

application area

Push plate automatic feeding machine is widely used in industries such as machine tools, mining, metallurgy, etc., especially suitable for production lines that require continuous and efficient material transportation.

Structural characteristics

Tilt angle installation: The push plate is installed at a tilt angle to the horizontal plane of the frame, which helps with the automatic rolling and conveying of materials.

Servo motor control: Using servo motors and screw rotation to drive the push plate to move up and down, improving control accuracy and stability.

Fixed mechanism: comprising at least two fixed plates, the push plate is flexibly connected at the gap between adjacent fixed plates to ensure stable movement of the push plate.

technical parameter

• Working voltage: usually 220V.

• Power: Depending on the model, the power may vary, such as 120W.

• Processing diameter: Suitable for materials with different diameter ranges, such as Φ 2MM - Φ 45MM.

• Processing length: Suitable for materials with different length ranges, such as 70MM-400MM.

Operation and maintenance

The push plate automatic feeding machine is easy to operate, safe and reliable. The entire system is properly integrated with the host, which can save labor and reduce production costs after use. In terms of maintenance, it is necessary to regularly check the status of sensors, motors, and transmission systems to ensure the normal operation of the equipment.

In summary, the push plate automatic feeding machine plays an important role in automated production lines due to its high efficiency, stability, and ease of operation.
