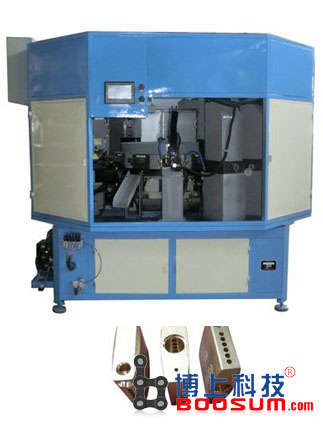

Padlock automatic drilling machine
Suitable for：
This machine is a padlock on a dedicated
machine, once all holes at the same time step
processing to a padlock, achieved a one-time
positioning guaranteed between cooperation and
position accuracy, improved production
efficiency, saving labor costs.
Machine with servo motor driven rotary table,
multiple fixtures simultaneously, CNC control,
Taiwan imported linear Guide, high efficiency
automatic machining, CNC programming control,
easy to operate, easy to understand.
Processing: automatic feeding, drill Center
holes, drill 2 lock Liang Kong, twist the center
hole, drilling water holes, drill lock beam
holes drilled bolt holes, automatic discharging.
Material: cast iron, copper, zinc alloy
Processing range: arc padlock
Productivity: 2800-3300 PCs/8 hours
Relevant parameters：
(1)
Precision
Using
three chainring
to do
split-type positioning,
high precision and
long-term use
will still
maintain the original
accuracy.
(2)
dial is not
lifting
action
The use of
three-type
gear,
in the implementation of
action
disk
partition without
vertical movement,
so it will not
be
cutting water and
swarf
sucked into the machine
body.
(3)
heavy cutting
Using
three-planar chainring
plus
powerful hydraulic
locking device,
positioning
the week
completely
meshing
tooth surfaces,
and therefore have a
high rigidity
and resistance to
heavy cutting.
(4)
and
rotary inertia of
the load
off
High
torque, and smooth
rotation
of the buffer
designed to
accumulate
high load
carrying capacity,
to provide a stable
and smooth
operation of
the division
precision and
long life.
Dial
segmentation, high precision,
strong
grip
and long life.
Occlusion due to
the way
using
engager segmentation
method, the more
so the more
increased
engagement
with
the precision, the
segmentation accuracy
is permanent. |
