Product Shows 》》Pneumatic double chamfering machine

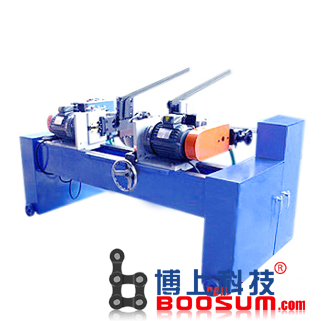

Pneumatic double chamfering machine

　　 Video Show

　
Pneumatic double chamfering machine features：
Pneumatic double chamfering machine
Pneumatic double chamfering machine

1, Double head pipe chamfering machine  can automatically feed, saving manpower;
2, belt vibration Zhengliao ensure neat;
3, Special design accurate and reliable feeding mechanism, the intermediate conveyor station according Tube OD select the desired type, the type is easy to save time on the exchange;
4, super head design, solid fixed blade, an increase blade life;
5, the two-stage feed speed, save time, and the slow easy stepless adjustment, processing perfection;
6, heavy cast body strong and stable, can avoid machining vibrations.

 Pneumatic double chamfering machine
Project ZH-BS50 Pneumatic double chamfering machine
Host Motor Processing generally iron pipe 2×1.5kw/4p
Machined aluminum or bronze tube 2×1.5kw/1.0,2/4p
Processing of stainless steel pipe 2×1/0.75kw,4/8p
Bit Tool Standard head, for diameter3/8"～2"O.D
Working length According to customer requirements
Compressed Air 0.6-0.8Mpa,120ml/min
Weight 1150kg
Machine size 2250×1200×1600mm

Packaging & Delivery

Packaging Details:

 Wooden Case and Tin Trunk

Delivery Detail:

 30 days

Specifications

Chamfering Machine

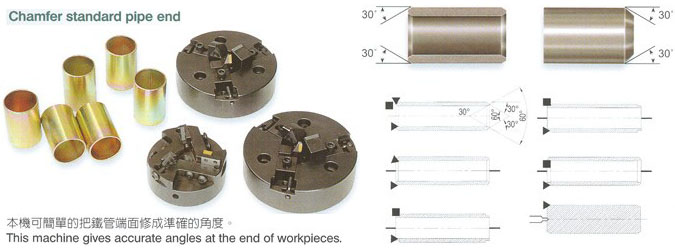

1)Chamfer size can be adjusted
2)no burr on the both side of pipe mouth
3)don't hurt the hands
