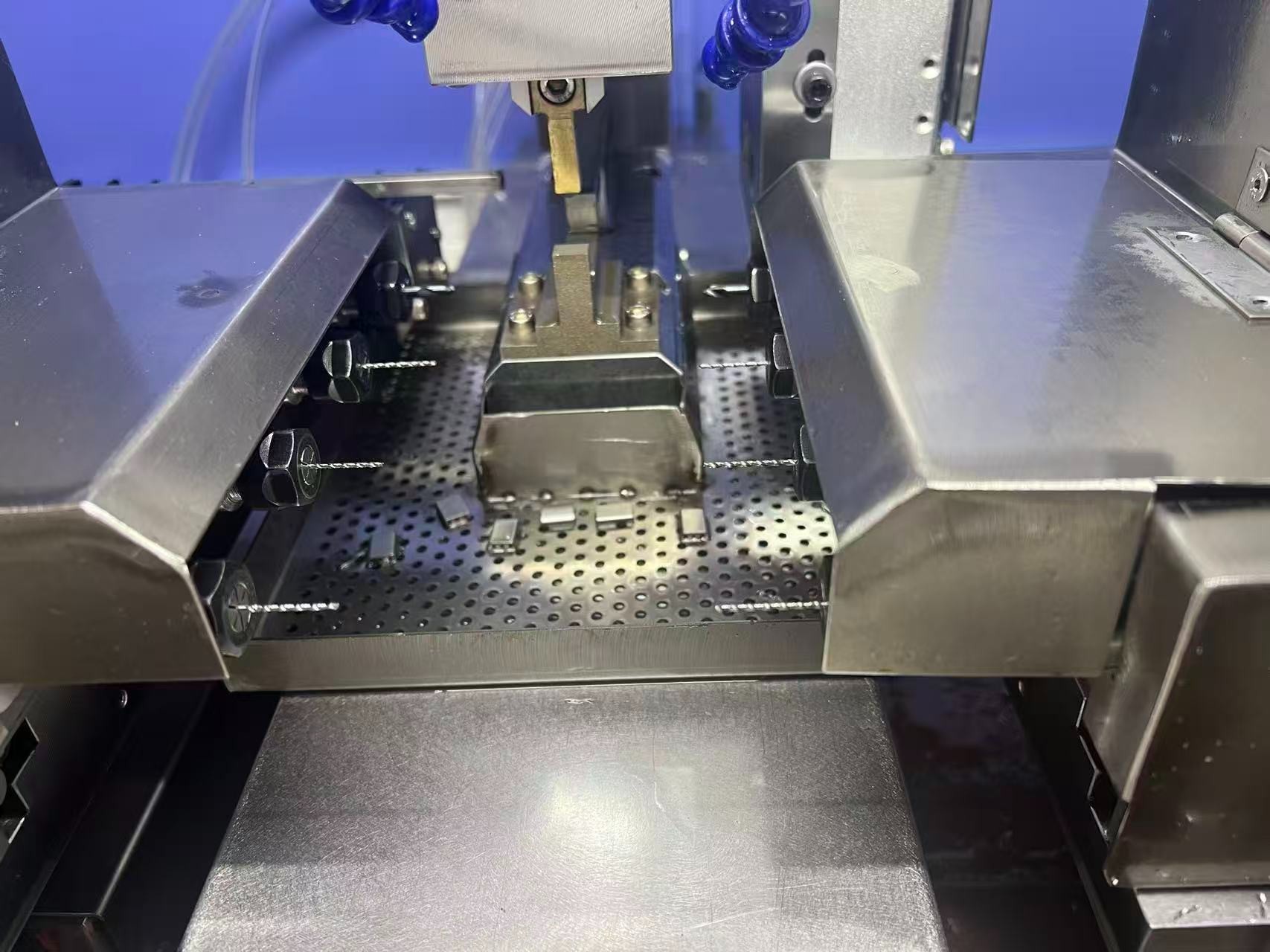

Stainless steel watchband automatic drilling machine

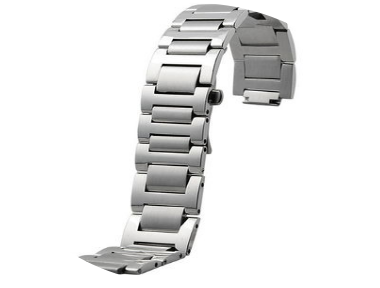

The "stainless steel watchband automatic drilling machine" is a specialized equipment designed for automatically drilling holes in stainless steel watchbands. It can precisely drill the required holes in stainless steel watchbands according to pre-set programs and parameters, thereby enhancing production efficiency and ensuring consistent and stable drilling quality. It is widely used in watch manufacturing and other related fields.

Processing materials: various metals such as stainless steel, alloy, titanium, copper, and iron

Processing length: 1-300mm

Processing efficiency: 300-1500 pieces/hour, determined based on the on-site environment, the material being processed, and the associated process

Features:

1. It can process four strips of product materials simultaneously, achieving higher efficiency. It adopts slag separation technology to directly clean the slippery surface.

2. It can simultaneously perform processes such as drilling center holes, chamfering, boring, drilling large and small holes, through-holes, and reaming. It can process up to 6 holes, with one spare drill bit included.

3. Break through technical bottlenecks and adopt advanced software processing, achieving a drilling depth of 10mm.

4. Drilling and cutting are synchronized, drilling where cutting is needed, saving cutting time and increasing efficiency by 30% compared to the same model.

5. For CNC machine adjustment, just input the relevant parameters and the computer will automatically calculate, achieving intelligent drilling and tool path planning.

6. The feed speed of the cutting tool is automatically adjusted according to drilling efficiency, making the blade more durable.

7. Imported precision guide rails and precision ball screws are used, with corresponding treatment of parts and components, surface electroplating, and partial hardening treatment, which increases the service life of the equipment.

8. With a 10-inch large screen, intuitive operation and debugging, it is simple, fast, easy to learn and understand. It can store 30 sets of data, allowing for arbitrary calling, making it convenient, simple, and fast.

Rated voltage: 220V Power: 1.1kw

Grounding: <4Ω; Air pressure: ≥0.5mpa

Operation mode: Touch screen operation

Appearance: Closed structure, high-temperature baking paint treatment, beautiful and tidy

Dimensions: L1250×W1000×H1700 (mm)

Weight: 480kg
